An ERP of 50kw, an array of 12 cp Jampros, 100 meter tower... What might be a transmitter output power?

The tower is this one:

http://img805.imageshack.us/img805/5708/tsflouselementos.jpg

I'm asking this just for curiosity...



[frankberry]

Depending on the transmission line, probably something in the neighborhood of 8kw.



[littlejohn]

12 cp bays spaced one wavelength will give a gain of a bit over 6. figure 6 and the rest is equivalent to the line loss. 100/6 = 16,700 Watts TPO for 100KW ERP. Look on the Continental Electronics web site for the 'eslide' programs, and you can plu in the values to compute the power more exactly.



[rfry]

100/6 = 16,700 Watts TPO for 100KW ERP

True, but the ERP is only 50 kW in this case, so tx output power will be half of ~16.7 kW.

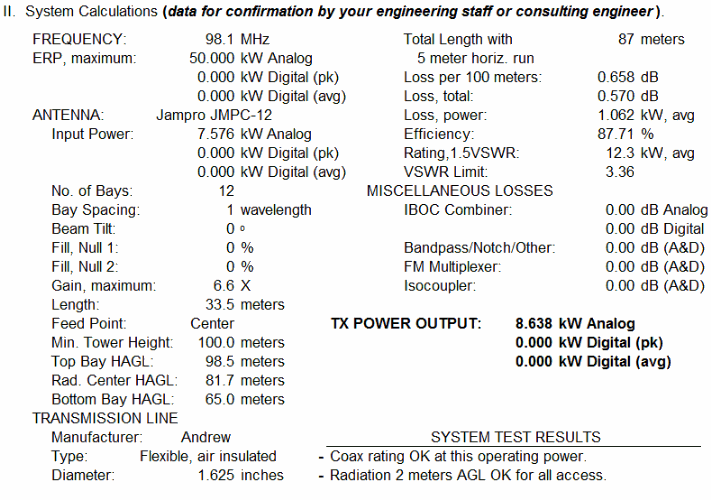

The link below leads to a more detailed system calculation for a frequency of 98.1 MHz, showing a TPO of about 8.64 kW.

http://i62.photobucket.com/albums/h85/rfry-100/FM_TPO_Calc.gif

//



[littlejohn]

I misssed the ERP, I'm used to Class C . But yeah , 8 and a half, bit over should make 50 ERP H & V.
