Part 15 AM Systems Compared

R

rfry

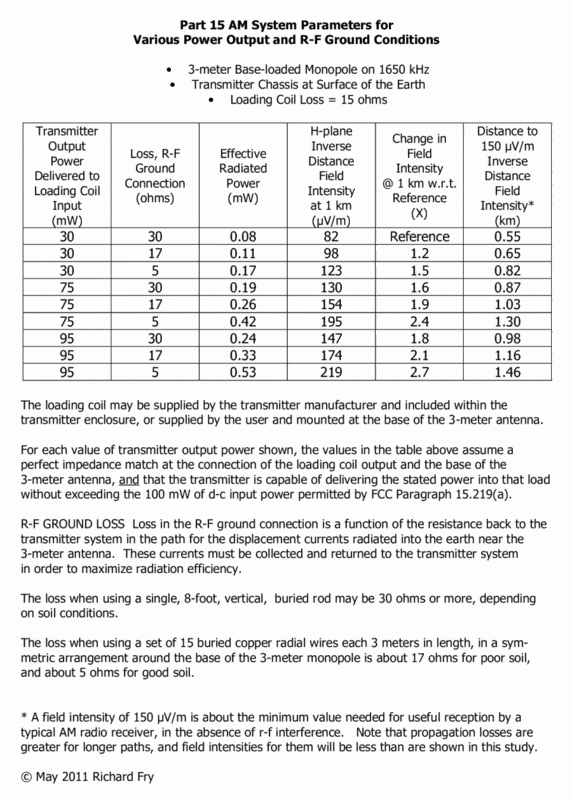

The link below leads to a study of Part 15 AM systems on 1650 kHz for three output power levels and three values of loss in the r-f ground connection.

The calculations are based on the amount of power that the transmitter can provide to the input of the loading coil of the antenna system while remaining compliant with Part 15.219.

This information includes the performance to be expected when using transmitters rated for a power output of 95 milliwatts.

http://i62.photobucket.com/albums/h85/rfry-100/Part_15_Typical_Values.gif
